🌡️ Termostat k chladničce Whirlpool Indesit – 484000008683

Whirlpool | Ignis | Bauknecht | Indesit | Ariston

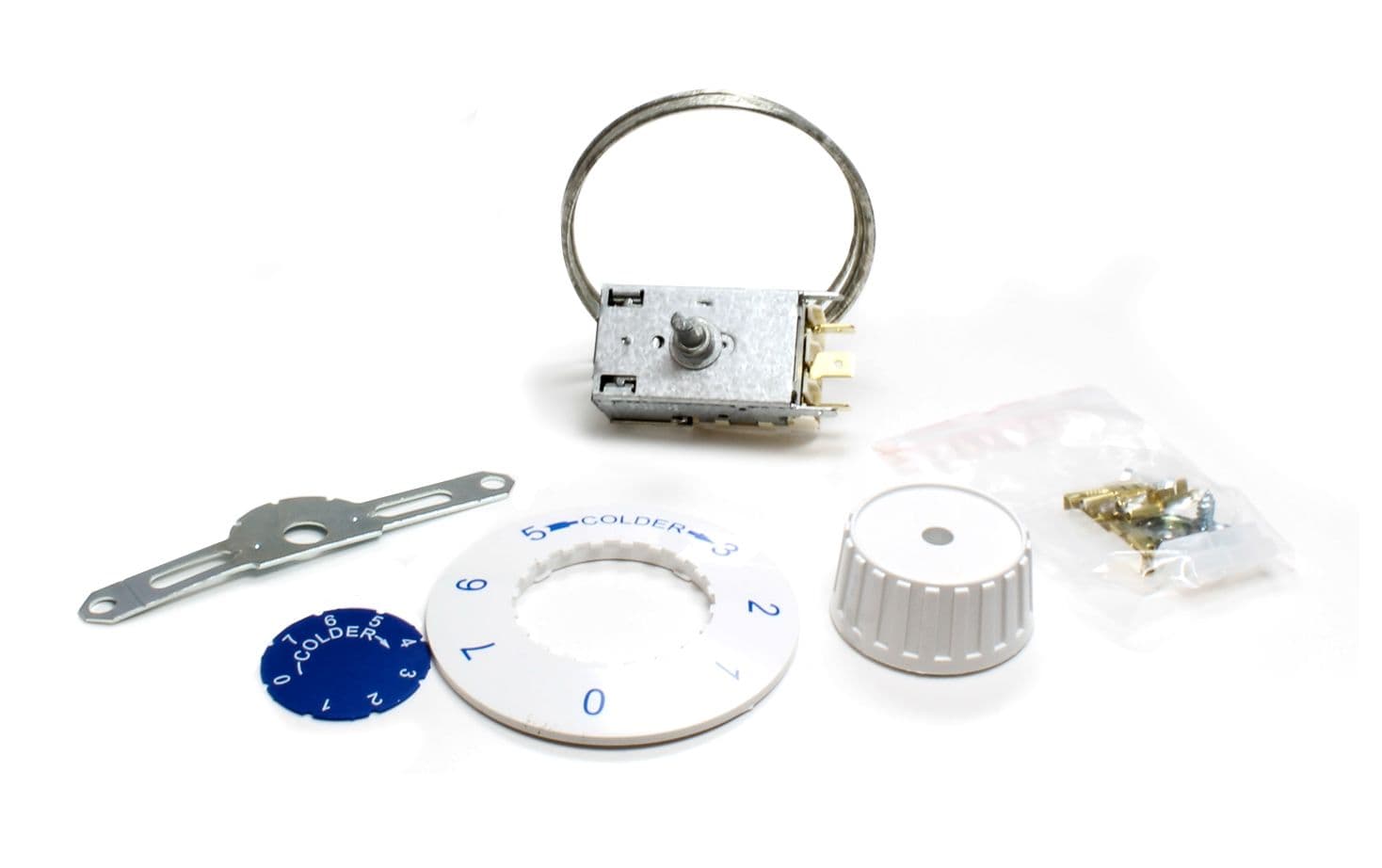

🌡️ Termostat k chladničce Whirlpool Indesit – 484000008683

Kat. číslo: TC01EAN: 4058212219457

328 Kčs DPH

271 Kč bez DPH

Skladem u dodavateleOdesíláme do 3–5 dní

Čísla výrobce

TC01

Kompatibilní modely

026239 853941322020 853941322021 LLOYDS213009 853940722000 HANSEATIC213188 853941322060 HANSEATIC3P280G 853945238020 8539452380213P28RG1 853945238010403441 853941522020 HANSEATIC466HIT 853946615010466HIT 853946615010 853946615011481927128788578366 853941322040 HANSEATIC595861KGA2700 855058901000595861KGA2700 855058901000 855058901001A260NV 850366012090 ETNAA260NV 850366012100 ETNAAKF281 853941619000 853941619001 CYLINDAAKF281 853941619000 853941619002 CYLINDAAKF281 853941619000 853941619003 CYLINDAARB465GPH 850046538020ARC2810REFRIGERATORSWP 850128171000ARC3060REFRIGERATORSWP 850130671000ARC4950 850149501000ARC4950 850149501000 850149501002ARC4950 850149501000 850149501003ARC4950REFRIGERATORSWP 850149510000ARC4960REFRIGERATORSWP 850149601000ARC5000REFRIGERATORSWP 850150001000ARC5000REFRIGERATORSWP 850150001000 850150001001ARC5020 F091984 850150215000ARC5020 F091984 850150215000 Q0919840000ARC5030 F091985 850150315000ARC5030 F091985 850150315000 Q0919850000ARC5050AL 850150515010ARC5050REFRIGERATORSWP 850150515000ARC5070 850150701000ARC5070 F090354 850150715000ARC5070 F090354 850150715000 Q0903540000ARC5070AL F090355 850150715010ARC5070AL F090355 850150715010 Q0903550000ARC5070ALREFRIGERATORSWP 850150701010ARC5090REFRIGERATORSWP 850150901000ARC5100IXREFRIGERATORSWP 850151011000ARC5120REFRIGERATORSWP 850151201000ARC5120REFRIGERATORSWP 850151201000 850151201001ARC5130 850151301000ARC5150REFRIGERATORSWP 850151501000ARC5150REFRIGERATORSWP 850151501000 850151501001ARC5150REFRIGERATORSWP 850151501000 850151501002ARC5150REFRIGERATORSWP 850151510000ARC5190REFRIGERATORSWP 850151901000ARC5190REFRIGERATORSWP 850151901000 850151901001ARC5200 850152001000ARC5200 850152016000ARC5200REFRIGERATORSWP 850152010000ARC5250 850152501000ARC5250 850152501000 850152501001ARC5250 850152501000 850152501002ARC5250 850152501000 850152501004ARC5250REFRIGERATORSWP 850152510000ARC5250REFRIGERATORSWP 850152510000 850152510001ARC5250REFRIGERATORSWP 850152510000 850152510002ARC5270 F091986 850152715000ARC5270 F091986 850152715000 850152715002ARC5270 F091986 850152715000 Q0919860000ARC5270 F091986 850152715000 Q0919860002ARC5270ALREFRIGERATORSWP 850152710000ARC5270ALREFRIGERATORSWP 850152710000 850152710001ARC5270ALREFRIGERATORSWP 850152710000 850152710002ARC5270REFRIGERATORSWP 850152715000 F091986 850152715001ARC5290 850152901000ARC5290 850152901000 850152901001ARC5290 850152901000 850152901002ARC5290 850152901000 850152901004ARF674G1 850367438020ARG637GWP 853463742000ARG642GWP 853464210000ARG644GT 853464442000ARG645GWP 853464501070 853464501071 PHILIPS-WHIRLPOOLARG694GWPDD39 853469465010ARL123ARL123IG 853912301000 853912301001ARL403GNTRD27 853940371000 NEUTROARL403GNTRD27 853940371010 NEUTROARL403GNTRD27 853940371020 NEUTROARL404GNTRD31 853940471000 NEUTROARL404GNTRD31 853940471010 NEUTROARL404GNTRD31 853940471020 NEUTROARL404GNTRD31 853940480000 NEUTROARL414GE 853941401010 853941401012ARL414GE 853941401010 853941401014ARL414GE 853941415010 853941415012ARL414H 853941401020ARL416H 853941601020ARL416H 853941601020 853941601021ARL416H 853941601020 853941601022ARL416H 853941615020ARL416H 853941615020 853941615021ARL419H 853941901020ARL435G 853943510000 853943510001ARL436G 853943610000ARL465G1 853946510020ARL465G1 853946510020 853946510021ARL465GREFRIGERATORSIG 853946510000ARL470G 853947001000ARL470G 853947001000 853947001001ARL471G 853947101000ARL473G1 853947318010ARL478GREFRIGERATORSIG 853947801000ARL478GREFRIGERATORSIG 853947801000 853947801001ARL478GREFRIGERATORSIG 853947801000 853947801002ARL483H 853948310000ARL483H1 853948310010ARL605G 853960510000 853960510001ARL615G 853961501000ARL615G 853961501000 853961501001ARL615G 853961515000ARL615G 853961515000 853961515001ARL616G 853961601000ARL617G 853961701000ARL617G1 853961701010ARL650H 853965010000ARL651H 853965110000ART147GWP 856414718000ART183DD41F 856418371010ART1841DD42F 856418471020ART184GWPDD42F 856418471010ART209 856420929000ART210 856421001000ART210 856421029000ART290GT 856429071000ART290GT1 856429071030ART290GT1 856429071030 856429071031ART290GTKC 856429071020ART291GT 856429142000ART291GT 856429171000ART291GT1 856429142010ART291GT1 856429142010 856429142011ART291GT1 856429171020ART291GT1 856429171020 856429171021ART328 856432801000ART328 856432815000ART328WP 856432815010ART750GWP 856475029000ART750GWP 856475029000 856475029001ART755GWP 856475529000ART758GTREFRIGERATORSWP 856475871000ART758GTREFRIGERATORSWP 856475871000 856475871001ART758GTREFRIGERATORSWP 856475871000 856475871002ART759GTREFRIGERATORSWP 856475942000ART759GTREFRIGERATORSWP 856475942000 856475942001ART759GTREFRIGERATORSWP 856475942000 856475942002ART759GTREFRIGERATORSWP 856475971000ART759GTREFRIGERATORSWP 856475971000 856475971001ART759GTREFRIGERATORSWP 856475971000 856475971002ART762GART762GWP 856476201000 856476201001ART762GBSWP 856476229000 856476229001ART762GRART762GRWP 856476238000 856476238001ART762GWP 856476210000 856476210001ART762GWP 856476271000ART762H 856476216020ART765GWP 856476501020ART771GBSWP1 856477129030ART774G1 856477401010ART774GWP 856477401000ART775G1 856477518010ART775GWP 856477518000ART776G1 856477601010ART776GWP 856477601000ART789GREFRIGERATORSWP 856478901000 856478901001ART789GREFRIGERATORSWP 856478901000 856478901003ART789GREFRIGERATORSWP 856478910000 856478910001ART789GREFRIGERATORSWP 856478910000 856478910003ART796HREFRIGERATORSWP 856479601010ART796HREFRIGERATORSWP 856479601010 856479601011ART796HREFRIGERATORSWP 856479610010ART796HREFRIGERATORSWP 856479610010 856479610011ART8002H 856480001040 856480001041ART804HAL 856480415070ART804HREFRIGERATORSWP 856480415060ART804HREFRIGERATORSWP 856480415060 856480415061ART806HAL 856480615070ART806HAL 856480615070 856480615071ART806HREFRIGERATORSWP 856480601050ART806HREFRIGERATORSWP 856480601050 856480601051ART806HREFRIGERATORSWP 856480615060ART806HREFRIGERATORSWP 856480615060 856480615061ART809H 856480910010ART809H 856480910010 856480910011ART809H 856480915010ART809H 856480915010 856480915011ART811G 856481115000 856481115002ART811GREFRIGERATORSWP 856481115010ART811GREFRIGERATORSWP 856481115010 856481115011ART8122GREFRIGERATORSWP 856481210010 856481210012ART8142HREFRIGERATORSWP 856481401050 856481401051ART8142HREFRIGERATORSWP 856481410000ART8142HREFRIGERATORSWP 856481410000 856481410001ART817H 856481715010ART817H 856481715010 856481715011ART819HREFRIGERATORSWP 856481910010ART8202H 856482038030ART8202H 856482038030 856482038031ART852HREFRIGERATORSWP 856485201000 856485201001ART853HREFRIGERATORSWP 856485301000 856485301001ART854H 856485401000ART857HREFRIGERATORSWP 856485710000ART858HREFRIGERATORSWP 856485815000ART858HREFRIGERATORSWP 856485815000 856485815001ART858HREFRIGERATORSWP 856485815000 856485815002ART859HREFRIGERATORSWP 856485916000 856485916001ART860HREFRIGERATORSWP 856486001000 856486001001ART861HREFRIGERATORSWP 856486101000 856486101001ART863HREFRIGERATORSWP 856486310000ART863HREFRIGERATORSWP 856486310000 856486310001ART863HREFRIGERATORSWP 856486310000 856486310002ART863HREFRIGERATORSWP 856486361000ART863HREFRIGERATORSWP 856486361000 856486361001ART863HREFRIGERATORSWP 856486361000 856486361002ART8640HREFRIGERATORSWP 856486410010ART8640HREFRIGERATORSWP 856486410010 856486410011ART8640HREFRIGERATORSWP 856486410010 856486410012ART866GREFRIGERATORSWP 856486601000ART866GREFRIGERATORSWP 856486601000 856486601001ART867GREFRIGERATORSWP 856486701000ART867GREFRIGERATORSWP 856486701000 856486701001ART867GREFRIGERATORSWP 856486701000 856486701002ART942HREFRIGERATORSWP 858694210000ART942HREFRIGERATORSWP 858694210000 858694210001ART942HREFRIGERATORSWP 858694210000 858694210002ARZ800GREFRIGERATORSWP 858680010000ARZ800GREFRIGERATORSWP 858680010000 858680010001ARZ800HREFRIGERATORSWP 858680001000ARZ801HREFRIGERATORSWP 858680138000ARZ802HREFRIGERATORSWP 858680201000ARZ802HREFRIGERATORSWP 858680210000ARZ804HREFRIGERATORSWP 858680401000ARZ805HREFRIGERATORSWP 858680501000ARZ805HREFRIGERATORSWP 858680510000ARZ807H 858680715000ARZ807HAL 858680715010ARZ807HREFRIGERATORSWP 858680701000ARZ808HREFRIGERATORSWP 858680810000ARZ810HREFRIGERATORSWP 858681010000ARZ811H 858681138000ARZ812HREFRIGERATORSWP 858681201000ARZ812HREFRIGERATORSWP 858681210000ARZ814HREFRIGERATORSWP 858681429000ARZ9420HREFRIGERATORSWP 858694261000ARZ9420HREFRIGERATORSWP 858694261000 858694261001ARZ9420HREFRIGERATORSWP 858694261000 858694261002ARZ942HREFRIGERATORSWP 858694201000ARZ945HREFRIGERATORSWP 858694538000ARZ945HREFRIGERATORSWP 858694538000 858694538001ARZ947HREFRIGERATORSWP 858694701000ARZ947HREFRIGERATORSWP 858694701000 858694701001ARZ947HREFRIGERATORSWP 858694701000 858694701003ARZ947HREFRIGERATORSWP 858694710000ARZ947HREFRIGERATORSWP 858694710000 858694710001ARZ947HREFRIGERATORSWP 858694710000 858694710002ARZ947HREFRIGERATORSWP 858694710000 858694710003ARZ947HREFRIGERATORSWP 858694710000 858694710004ARZ947HREFRIGERATORSWP 858694715000ARZ947HREFRIGERATORSWP 858694715000 858694715001ARZ947HREFRIGERATORSWP 858694715000 858694715003ARZ9490HREFRIGERATORSWP 858694910010ARZ9490HREFRIGERATORSWP 858694910010 858694910011ARZ949H 858694915000ARZ949HREFRIGERATORSWP 858694901000ARZ949HREFRIGERATORSWP 858694901000 858694901001ARZ949HREFRIGERATORSWP 858694901000 858694901003ARZ949HREFRIGERATORSWP 858694910000ARZ9520HREFRIGERATORSWP 858695261000ARZ9520HREFRIGERATORSWP 858695261000 858695261001ARZ952HREFRIGERATORSWP 858695201000ARZ954HREFRIGERATORSWP 858695410000ARZ957H 858695715010ARZ957HAL 858695715020ARZ957HREFRIGERATORSWP 858695701000ARZ957HREFRIGERATORSWP 858695701000 858695701001ARZ957HREFRIGERATORSWP 858695701000 858695701002ARZ957HREFRIGERATORSWP 858695715000ARZ957HREFRIGERATORSWP 858695715000 858695715001ARZ957HREFRIGERATORSWP 858695715000 858695715002ARZ959H 858695915000ARZ959HREFRIGERATORSWP 858695901000ARZ959HREFRIGERATORSWP 858695901000 858695901001ARZ959HREFRIGERATORSWP 858695901000 858695901002ARZ959HREFRIGERATORSWP 858695910000ARZ959HREFRIGERATORSWP 858695910000 858695910001ARZ959HREFRIGERATORSWP 858695910000 858695910002ARZ960HREFRIGERATORSWP 858696038000ARZ960HREFRIGERATORSWP 858696038000 858696038001ARZ960HREFRIGERATORSWP 858696038000 858696038002ARZ962HREFRIGERATORSWP 858696210000ARZ9670HREFRIGERATORSWP 858696761000ARZ9670HREFRIGERATORSWP 858696761000 858696761001ARZ967HREFRIGERATORSWP 858696701000ARZ967HREFRIGERATORSWP 858696701000 858696701001ARZ967HREFRIGERATORSWP 858696701000 858696701002ARZ967HREFRIGERATORSWP 858696710000ARZ967HREFRIGERATORSWP 858696710000 858696710001ARZ967HREFRIGERATORSWP 858696710000 858696710002ARZ967HREFRIGERATORSWP 858696710000 858696710003ARZ9690HREFRIGERATORSWP 858696961000ARZ9690HREFRIGERATORSWP 858696961000 858696961001ARZ969HREFRIGERATORSWP 858696901000ARZ969HREFRIGERATORSWP 858696910000ARZ969HREFRIGERATORSWP 858696916000ARZ969HREFRIGERATORSWP 858696916000 858696916001ARZ969HREFRIGERATORSWP 858696916000 858696916002ARZ9790HREFRIGERATORSWP 858697910000ARZ9790HREFRIGERATORSWP 858697910000 858697910001ARZ9790HREFRIGERATORSWP 858697910000 858697910002ARZ979HALREFRIGERATORSWP 858697910010ARZ979HALREFRIGERATORSWP 858697910010 858697910011ARZ979HREFRIGERATORSWP 858697915000ARZ979HREFRIGERATORSWP 858697915000 858697915001ARZ983H 858698315000ARZ983H 858698315000 858698315001ARZ984HREFRIGERATORSWP 858698401000ARZ984HREFRIGERATORSWP 858698401000 858698401001ARZ9850HCombinafrigorifica 858698529000ARZ9850HCombinafrigorifica 858698529000 858698529001ARZ9850HREFRIGERATORSWP 858698510000ARZ9850HREFRIGERATORSWP 858698510000 858698510001ARZ9850HREFRIGERATORSWP 858698510000 858698510002ARZ985HREFRIGERATORSWP 858698501000ARZ985HREFRIGERATORSWP 858698501000 858698501001C00383124CB351REFRIGERATORSNE 853946863000 853946863001 NEUTROCB351REFRIGERATORSNE 853946863000 853946863002 NEUTROCB351REFRIGERATORSNE 853946863000 853946863003 NEUTROCBA251H1 853946538030CBA251RH 853946538020CBA251RH1 853946538040CBA254M 853965038000CBA254M 853965038000 853965038001CBA254M 853965038000 853965038002CBA254RM 853965038010CBA291H 853946838010CBA291H 853946838010 853946838011CBA291H1 853946838020CBA294M 853965238000CBA294M 853965238000 853965238001CBB24REFRIGERATORSIG 853966638000CBC30 853966701000CBC30 853966701000 853966701001CZE296AAL 853968810000DDL240 853940342000 CRYSTALDDL280 853940442000 CRYSTALDP250WG 853905138060 853905138061DP25G1 853945038000 853945038001DPO223G 853961529000DPO223G 853961529000 853961529001DPO223GBS 853961529010DPO227G 853961629000DPO227GBS 853961629010DPO233G 853961729000DPO233G1 853961729020EXCELLENCEKGA 855058901020EXCELLENCEKGA3REFRIGERETORSBK 855035701010KG241260855 853941322030 853941322031 HANSEATICKG241260855 853941322030 HANSEATICKG241509560 853941322050 HANSEATICKGA2500REFRIGERATORSBK 855056701020KGA2500REFRIGERATORSBK 855056701020 855056701021KGA2502REFRIGERATORSBK 855056761010 855056761011KGA27002REFRIGERATORSBK 855035701000KGA27002REFRIGERATORSBK 855035716000KGA27002REFRIGERATORSBK 855035716000 855035716002KGA2709 855058901010KGA2709 855058901010 855058901011KGB2500 855056716000KGB25001REFRIGERATORSBK 855056701010KGB25001REFRIGERATORSBK 855056701010 855056701012KGB25001REFRIGERATORSBK 855056716010KGB25001REFRIGERATORSBK 855056716010 855056716012KGB2500REFRIGERATORSBK 855056701000KGB2509REFRIGERATORSBK 855056761000KGB2509REFRIGERATORSBK 855056761000 855056761002KGB2700 855056801000KGB2709 855056801010KGBSYMPHONY290 855056901000KGC25522 855052101280 855052101281KGC25562 855052101290 855052101291KGC27562 855060001170KGC27562 855060001170 855060001171KGC29562 855050201180 855050201181KGCSYMPHONY290 855050201190 855050201191KGCT25562 855052116120 855052116121KGG27652FH 855060001180KGG27652FH 855060001180 855060001181KVC24350 855050001060KVC24352 855050001070KVC24432 855051916040KVC24460WSKVC24460 855051901070KVC24462 855051901080KVC24462 855051916050KVC28350 855052201080KVC28460WSKVC28460 855052001100KVC28462 855052001110KVC28462 855052016070KVC35150 855052301020KVC351501 855052301030MKK270 855150216040 855150216041 MIOSTARMKK270 855150216040 855150216042 MIOSTARRC2236G 853961529020 853961529021 RADIOLARC2236G 853961529020 RADIOLARC2276G 853961629020 RADIOLARC2276GBS 853961629030 RADIOLARC2336G 853961729010 RADIOLARC2336G1 853961729030 RADIOLARC5523G 850046229270 RADIOLARD28 853940371030 853940371031 NEUTRORD28 853940371030 853940371032 NEUTRORD28 853940371030 NEUTRORD28AL 853940371040 NEUTRORD32 853940471030 853940471031 NEUTRORD32 853940471030 853940471032 NEUTRORD32 853940471030 NEUTRORD32AL 853940471040 NEUTROSC3290COMBINE289LLA 853946929020SC4290REFRIGERATORSLA 853964929000SCO330 853912329020UC83 853946715000 SEEBOARDUC98 853946615000 SEEBOARD

Popis

Termostat k chladničce 484000008683 je důležitou součástí pro regulaci teploty v kombinovaných i jednodveřových chladničkách: vhodný pro typy značek Whirlpool, Indesit, Ignis, Bauknecht, Laden a další. Díky přesnému senzoru K59 (kapilára 1200 mm) je zajištěno spolehlivé automatické udržování správných teplot – nižší spotřeba energie i vyšší čerstvost potravin! 🧊 Tento náhradní díl s kódy: K59-L1102 Ranco, 484000008683 C00383124, 481927128788 C00312010 skvěle nahrazuje původní termostaty uvedených modelů, pokud s původním čidlem nastaly potíže jako špatné spínání, kolísání chlazení či zamrzání. 🏠

Doporučujeme tento Aftermarket díl pro dvoudveřové chladničky s mrazákem nahoře i dole, ale také pro jednodveřové lednice s termostatem K59xxx. Obvyklá montáž je snadná a zvládne ji i zručnější domácí uživatel, výhodou je detailní shoda s originálními rozměry – termostat je tak plně kompatibilní s vybranými modely. Přesné nastavení teploty min. +3,5/-11, max. +3,5/-26 °C. Zajistí dlouhou životnost i bezpečnost provozu. 👨‍🔧 Pokud hledáte spolehlivou náhradu k originálu za přijatelnou cenu a rychle dostupnou, je tento produkt ideální volbou!

  • ✔️ Délka kapiláry: 1200 mm K59-L1102 Ranco
  • ✔️ Kódy: 484000008683, C00383124, 481927128788, C00312010 – kompletní shoda s výrobními čísly
  • ✔️ Původ produktu: AfterMarket
  • ✔️ EAN: 4058212219457
  • ✔️ Výměna a refundace: OMEZENÁ

Technické parametry

  • Typ: Termostat K59-L1102
  • Délka kapiláry: 1200 mm
  • Rozsah teplot: min. +3,5/-11 °C, max. +3,5/-26 °C
  • Kategorie: AfterMarket náhradní díl
  • Kódy dílu: 484000008683, C00383124, 481927128788, C00312010
  • Značky: Whirlpool, Indesit, Bauknecht, Ignis, Laden
  • EAN: 4058212219457

Montážní a bezpečnostní pokyny 🛠️

Před montáží vždy odpojte spotřebič od elektrické sítě. Starý termostat opatrně odpojte, termistorem (čidlem) nahraďte podle přiloženého schématu výrobce. Dbejte na správnou délku a usazení kapiláry do kanálku – zabráníte tím případné poruše chlazení i nežádoucímu zamrzání. Po instalaci proveďte několikahodinový test správné regulace teploty v chladničce. V případě nejasností doporučujeme konzultaci s odborným servisem. ❄️

Kompatibilní spotřebiče

Vybrané modely chladniček, pro které je termostat K59-L1102 určen:

  • Whirlpool ARC 2810, ARC 3060, ARC 4950, ARC 5200, ARC 5270
  • Whirlpool ART 8122G, ART 852H, ART 861H
  • Indesit C00383124
  • Ignis ARL478G, CBB24
  • Bauknecht KGA2502, KGA27002
  • Laden SC4290
  • Whirlpool ARZ947, ARZ969
💡 Tip: Pravidelná kontrola funkčnosti termostatu (cca jednou za 12 měsíců) předchází nečekaným poruchám chlazení a přispívá k delší životnosti chladničky i nižší spotřebě energie.
